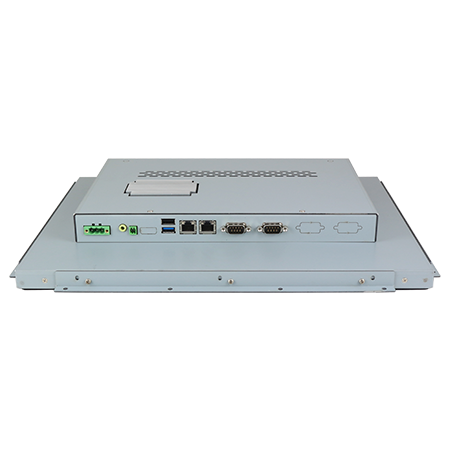

OPC-5158P

OPC-5158P

Features

  • x86 base Intel Celeron N2930 Processor
  • Low Power Consumption Design
  • Slim & Fanless Design
  • Easily Achieve Flat Front Bezel Design
  • Adjustable Front Bezel Design(2mm, 3mm and 6mm Front Bezel)
  • 5-wire Resistive Touch Window/Projected Capacitive Touch Screen Support 7H Optional
  • Front Bezel IP65
  • Wide-ranging 9~36V DC Power Input
  • System Power LED Light

Specifications

System

  • Processor   Onboard Intel Celeron N2930 1.83GHz Processor
  • System Chipset   SoC
  • System Memory   Onboard 4GB DDR3L 1600MHz

External I/O

  • USB   2 x USB 3.0 type A
  • Serial/Parallel  1 x RS-232/422/485 DB-9, Default RS-232, COM1 1 x RS-232 DB-9, COM2
  • Audio  1 x Audio line out
  • LAN    2 x GbE LAN RJ-45
  • Power  1 x 3-pin DC Power input terminal 1 x 2-pin Connector for power on/off butto
  • Others  1 x System power LED light
  • Option   2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1 2 x CAN bus via TB-528CAN2 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1 x RS-232 DB-9 + 1 x Power Button via TB-528C1U2P1 2 x USB 2.0 type A via TB-528U2

Expansion

  • Expansion slot 1 x Intel Mini-PCIe slot full size

Storage

  • Space Storage 1 x 2.5” SATA HDD bay for SATA HDD

LCD

  • Display Type   15" TFT-LCD
  • Max. Resolution   1024 x 768
  • Max. Color  16.7M
  • Luminance (cd/m2)    450
  • View Angle   H: 160/V: 160
  • Contrast   800:1
  • Backlight Lifetime    60,000 Hrs

Touch screen – Resistive Touch Window

  • Interface  USB
  • transmission (%)    80%

Touch screen – Projected Capacitive Type)

  • Interface   USB
  • Light transmission (%)   Over 90%

Power

  • Power input 9~36V DC
  • Power Consumption  MAX: 18.7W (OPC-5128) MAX: 19.5W (OPC-5128P)

Mechanical

  • Front Bezel  Flat Bezel Design(2mm, 3mm, 6mm)/Steel/Stainless Steel /Aluminum With System Power LED Light
  • Rear Bezel
  • Dimension(mm)   323 x 263 x 54 mm
  • IP Rating  385 x 299.5 x 54.8 mm
  • Net weight(Kgs) 4.9 Kg

Environment

  • Operating temperature(°C)   0~40°C without fan / 0~60°C with fan
  • Storage temperature(°C)   -20~60°C
  • Storage humidity   10 to 90% @ 40°C, non- condensing
  • Certification   CE/FCC class A

Operating System Support

  • Windows Embedded Compact 7, Windows Embedded Standard 7
  • Windows 7 Pro(FES), Windows 7 Ultimate(FES)
  • Windows Embedded 8.1 Industry Pro, Windows

Ordering Information

  • OPC-5158-01  15" XGA fanless open frame PC with AtomN2930 1.83G CPU, 4GB DDR3 RAM, Resistive touch screen, 9~36VDC input with adapter, steel enclosure
  • OPC-5158P-01 15" XGA fanless open frame PC with AtomN2930 1.83G CPU, 4GB DDR3 RAM, Projected capacitive touch, 9~36VDC input with adapter, steel enclosure
