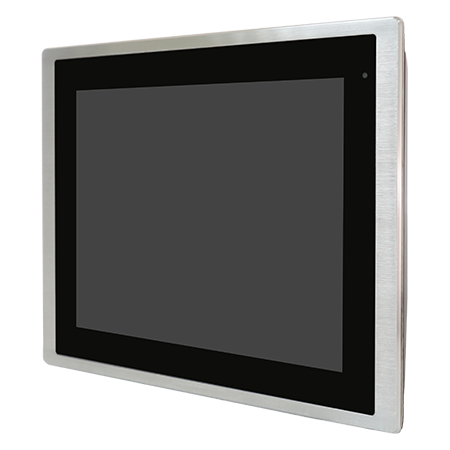

FABS-812P

FABS-812P

Features
  • 12.1” Food Industrial Panel PC
  • Flat front panel touch screen
  • Fanless design
  • Intel Celeron N2930 Processor
  • Onboard 4GB DDR 3L 1600 MHz
  • Wide range DC 9~36V power input
Specifications
System
  • CPU Onboard Intel Celeron N2930 Processor (2M Cache,1.83GHz)
  • System Chipset   SoC
  • Memory  Onboard 4GB DDR3L SDRAM
External IO Port
  • USB 2 x USB 3.0 type A
  • Serial / Parallel  1 x RS-232/422/485 DB-9, default RS-232(COM1) 1 x RS-232 DB-9(COM2)
  • LAN  2 x GbE LAN RJ-45
  • Audio  1 x Line-out
  • Power  1 x 3-pin DC Power input terminal 1 x 2-pin connector for power on/off button
  • Option  VESA Stand 4G LTE/Wi-Fi/BT 4 x USB 2.0 (TB-528U4) 4 x USB 2.0 + 1 x Mini PCIe + 1 SIM slot (TB-528U4ME1) 1 x COM + 2 x USB 2.0 (TB-528C1U2) 1 x COM + 2 x USB 2.0 + 1 x Mini PCIe + 1 x Power Button (TB-528C1U2P1) 2 x COM(RS-232) (TB-528C2) 2 x COM(RS-232) + 1 x Mini PCIe slot + 1 x SIM slot (TB-528C2ME1) 2 x COM(RS-232/485, isolated) (TB-528C2I) 2 x CAN (TB-528CAN2) 1 x LAN + 2 x USB 2.0 (TB-528E1U2) 1 x LAN + 2 x USB 2.0, 25W (TB-528NE1U2POE) 1 x LAN + 2 x USB 2.0, 25W (TB-528E1U2POE) UPS Battery 21W/10.8W/1.95Ah(3S1P) System is only allowed to build in either I/O board TB-528 series or UPS battery
Storage Space
  • HDD/SSD 1 x MO-297 SATA SSD bay (Easy Accessible)
  • Others 1 x internal SD slot onboard
Expansion
  • Expansion Slot 1 x Internal Mini-PCIe slot full size 1 x SIM card holder / Micro SD card reader
Dispalay
Display Type
  •  Standard 12.1” TFT-LC
  •  High Brightness Optional  12.1” TFT-LC
Max. Resolution
  • Standard 800 x 600 1024 x 768
  •  High Brightness Optional 800 x 600 1024 x 768
Max. Color
  • Standard 262k / 16.2M
  •  High Brightness Optional  262k / 16.2M
Luminance (cd/m2)
  • Standard 450 / 500
  •  High Brightness Optional  1000 / 1000
View Angle
  • Standard 178(H) / 178(V) 178(H) / 178(V)
  •  High Brightness Optional  178(H) / 178(V) 160(H) / 140(V)
Contrast
  • Standard 1500:1 / 700:1
  •  High Brightness Optional  700:1
Backlight Lifetime
  • Standard  50,000 hrs / 30,000 hrs
  •  High Brightness Optional  50,000 hrs / 50,000 hrs
Touch Screen
  • Type Projected Capacitive Touch (For P model) Glass (For G model)
  • Interface  USB
  • Light Transmission  over 90%
Power
  • Power Input  DC 9~36V
  • Power Consumption  FABS-812P: 30W (MAX)
Mechanical
  • Construction  304 Stainless steel front bezel (Default) 316 Stainless steel front bezel (Optional) Aluminum back cover
  • Mounting Panel mount, VESA mount 100 x 100
  • Dimension 331 x 257 x 52 mm
  • Net Weight 3.4 kg
  • IP Rating IP66 Compliant Front Bezel
Environmental
  • Operating Temperature  0~50˚C
  • Storage Temperature   -30~70 °C
  • Storage Humidity  10~90% @40 °C non-condensing
  • Certificate  CE/FCC Class A for Resistive Model CE/FCC Class A/EN 1672-2 for P/G/PH/GH Model
Operating System Support
  • AWindows 10 IoT Enterprise
Ordering Information
  • FABS-812P (Barebone)  12.1" SVGA fanless HMI barebone with Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, Projected Capacitive touch,, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis.
  • FABS-812G (Barebone)  12" SVGA/ XGA fanless HMI barebone with Celeron N2930 (1.83.GHz ) CPU, 4GB DDR3L RAM, Protection Glass, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassis.
